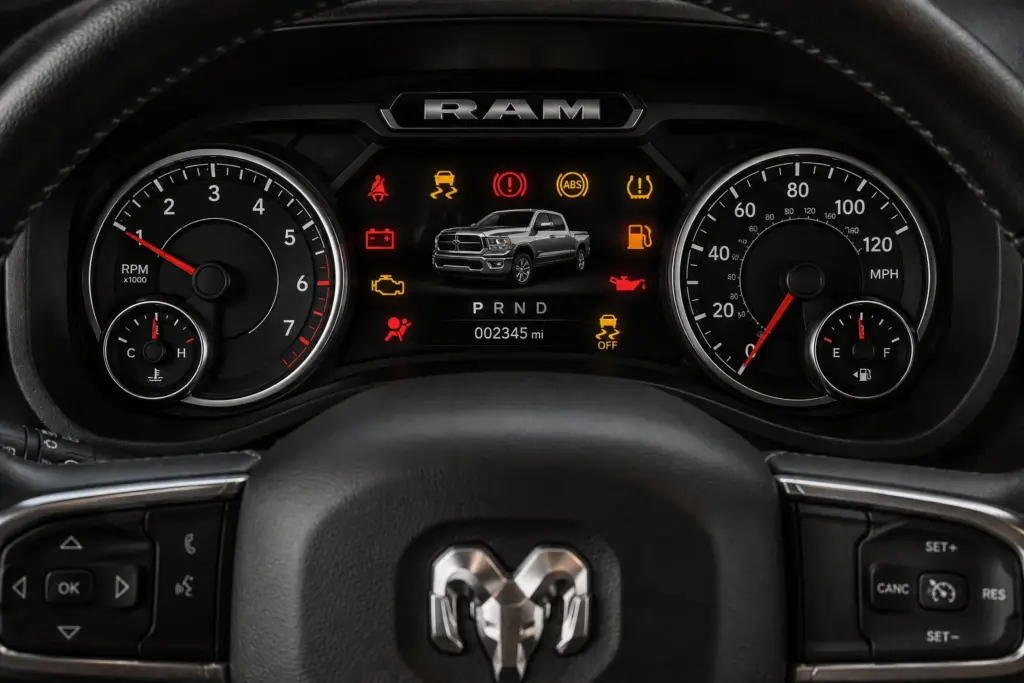

Modern trucks use bright dashboard icons to communicate directly with drivers. Your instrument cluster contains dozens of lights designed to keep you safe. Understanding these warning signals helps you fix small mechanical issues before expensive engine failures occur.
Dodge Ram trucks feature advanced sensor networks that monitor every vital system. A glowing symbol can indicate anything from low tire pressure to severe engine overheating. Knowing how to read these icons gives you total control over your vehicle.
We will explain the full list of Dodge Ram warning lights. You will learn what every color means and what actions you must take immediately. This guide keeps your truck safe on long road trips.
Understanding The Color Coding System On Your Dashboard
Red Warning Lights Mean Stop Driving
Red lights represent urgent safety hazards or immediate mechanical failures. When a red symbol appears, you must pull over safely as soon as possible. Driving with an active red light can destroy your engine completely.
These symbols alert you to low oil pressure or failing brake systems. Ignoring a red icon will lead to dangerous accidents or massive repair bills. Always take red warnings seriously on your dash.
Yellow Or Amber Lights Mean Get Service Soon
Yellow or amber lights signal a non-emergency issue or a system fault. They serve as an early warning system for your truck. You can usually continue driving your vehicle short distances.
However, you should schedule a mechanic visit very soon. Yellow symbols cover issues like tire pressure drops or emissions faults. Resolving yellow lights quickly stops them from turning into costly red warnings.
Green Blue And White Indicator Lights
Green, blue, and white lights are simple status indicators. They do not mean anything is broken or failing on your vehicle. They simply inform you that a specific vehicle feature is currently turned on.
For example, a green light shows your cruise control system is active. Blue symbols typically light up when you turn on your high beams. White lights often indicate that lane assist features are turned on.

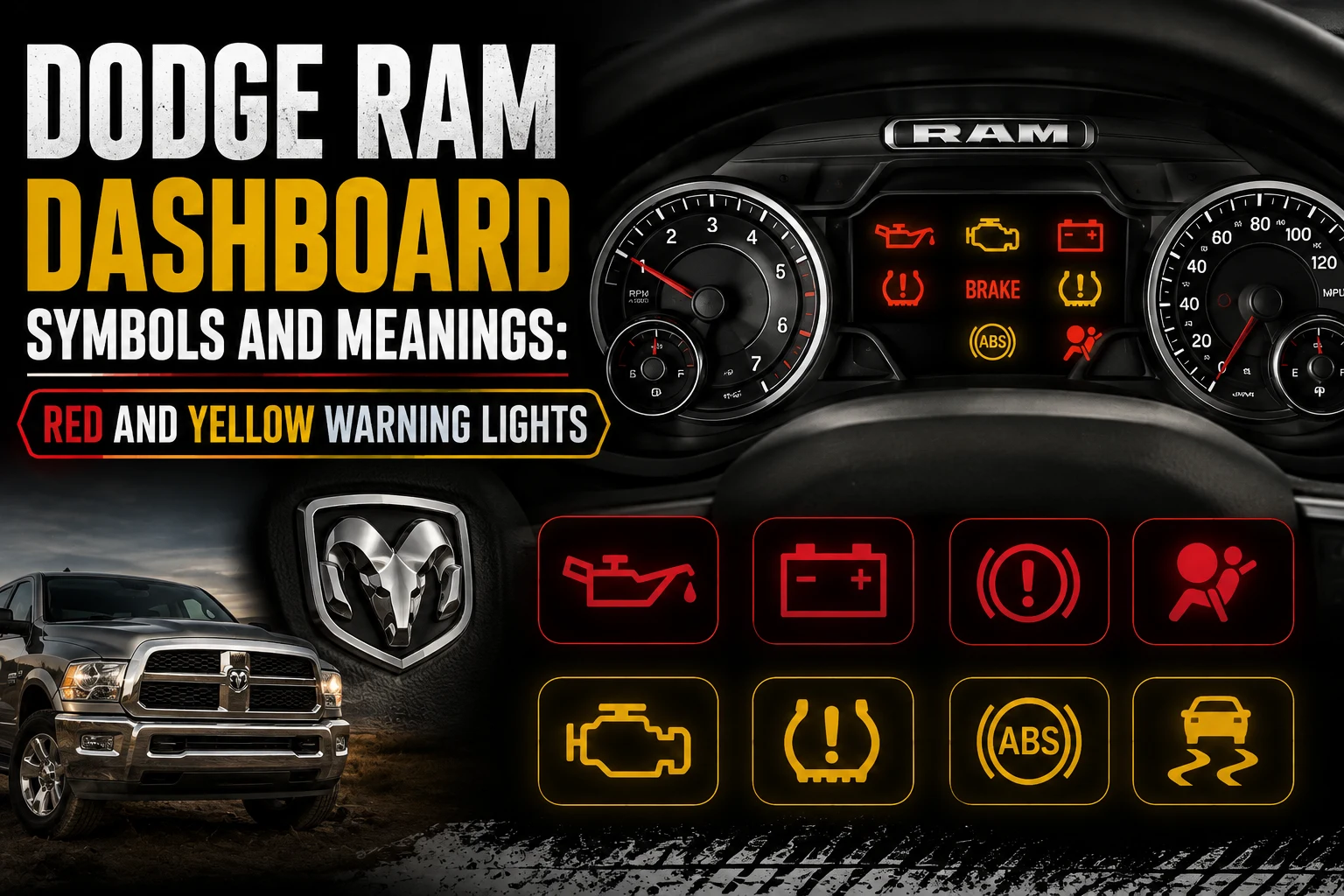

Red Dodge Ram Warning Lights And Critical Safety Icons
Oil Pressure Light (Oil Can Symbol)
The red oil can symbol indicates dangerously low engine oil pressure. Engine oil lubricates moving metal parts inside your motor. Without proper pressure, metal components grind together and destroy the engine block rapidly.
If this light turns on while driving, safely pull over immediately. Turn off your engine and check the dipstick under the hood. Top off your oil or call a tow truck right away.
Electronic Throttle Control (Red Lightning Bolt)
The red lightning bolt inside two brackets signals a throttle fault. This symbol is unique to Dodge and Ram truck models. It means your electronic throttle control system is malfunctioning.
Your truck might enter a slow limp mode to protect the motor. You may experience poor acceleration or a complete loss of pedal power. Have a professional mechanic inspect the throttle body immediately.
Engine Coolant Temperature Warning
This light looks like a red thermometer resting in liquid waves. It tells you that your engine operating temperature is way too high. Overheating can warp your engine cylinder heads in minutes.
Pull over instantly and let the engine cool down completely. Never open the radiator cap while the engine is hot. Check your coolant fluid levels once the vehicle cools down.
Battery Charge Warning Light
The red battery icon shows that your electrical charging system failed. It usually means your alternator stopped charging the vehicle battery. Your truck is now running entirely on remaining battery power.
Your radio and headlights will drain the remaining charge very quickly. Drive straight to a repair shop or pull over safely. The engine will shut off completely once the battery drains fully.
Brake System Warning Light
This red symbol features an exclamation point inside a circle. It indicates low brake fluid or a severe hydraulic system failure. It also turns on whenever your parking brake is engaged.
First, make sure your parking brake is fully released. If the light stays on, your brakes may not stop the truck. Pull over carefully using your foot brake and call for roadside assistance.
Amber And Yellow Dodge Ram Dashboard Warnings
Check Engine Light (Engine Block)
The yellow check engine light indicates an issue with your engine or emissions. It can mean something simple like a loose gas cap. It can also point to failing oxygen sensors or engine misfires.
If the light stays solid yellow, you can drive to a local shop. If the check engine light flashes rapidly, stop driving immediately. A flashing light means severe misfires are destroying your catalytic converter.
Tire Pressure Monitoring System (TPMS Exclamation Mark)
This amber symbol looks like a horseshoe with an exclamation mark inside. It means at least one of your tires dropped below safe air pressure. Driving on flat tires causes sudden blowouts on the highway.
Check the tire pressure screen on your digital dashboard display. Inflate all four tires to the recommended pressure listed on your driver door frame. The symbol will turn off automatically after driving a short distance.
Anti Lock Braking System (ABS Light)
The yellow ABS light warns that your anti-lock braking system failed. Your standard hydraulic brakes will still stop the vehicle normally. However, the automated system that stops wheels from locking during sudden skids will not work.
Drive carefully and allow extra stopping distance on wet roads. Avoid slamming on your brakes during emergency stops. Have a certified technician check your wheel speed sensors.
Transmission Temperature Warning
This amber symbol shows a thermometer inside a round gear shape. It indicates that your automatic transmission fluid is getting way too hot. Heavy towing or climbing steep mountains often causes transmission overheating.
Pull over and leave the truck idling in park to cool down. Do not turn the engine off immediately, as cooling fans need power. Resume driving only after the light turns off completely.
Diesel Cummins Specific Ram Dashboard Symbols
Wait To Start Light (Coil Symbol)
This amber symbol looks like a coiled wire or spring on diesel models. It indicates that the intake air heater or glow plugs are warming up. Cummins diesel engines need pre-heated air to start smoothly in cold weather.
Never turn the ignition key to start while this light glows. Wait patiently until the symbol turns off completely before cranking the engine. Starting early puts heavy strain on your starter motor and battery.
Diesel Exhaust Fluid (DEF Light)
The DEF symbol looks like a bottle pouring fluid into a pipe. It warns that your Diesel Exhaust Fluid level is getting extremely low. Modern diesel trucks require DEF to reduce dangerous exhaust emissions.
If you ignore this warning, the truck engine will enter speed-limited mode. Your truck might lock itself to a maximum speed of five miles per hour. Refill your DEF tank immediately to maintain normal driving speeds.
Water In Fuel Indicator
This yellow light shows a fuel pump icon with water droplets beneath it. It means water separated from the diesel fuel and collected in the filter bowl. Water inside diesel fuel injectors causes severe engine damage.
You must drain the water separator valve on your fuel filter housing manually. Do not continue driving with water trapped inside your fuel lines. Clean fuel keeps your expensive Cummins injectors working properly.
Diesel Particulate Filter (DPF Warning)
The DPF symbol looks like a box filled with tiny dots and waves. It means your exhaust filter is clogging up with dark soot. The truck needs to run an automatic high-temperature cleaning process.
Drive your truck at highway speeds for thirty minutes straight. This allows the exhaust system to get hot enough to burn off soot. Short city trips prevent the filter from cleaning itself correctly.
Interpreting Modern Tech Abbreviations On Your Dash
Deciphering Truck Terminology
Modern Ram trucks use digital screens alongside traditional analog gauges. These digital cluster displays show fast text abbreviations and popup messages. Drivers must learn these short terms to understand vehicle health reports.
When researching truck terms online or chatting with mechanics, drivers encounter technical shorthand. You might also encounter informal terms in truck forums, similar to how people look up the mw meaning text to understand fast online messaging. Learning basic automotive terms makes troubleshooting dashboard errors much easier.
Staying Focused Behind The Wheel
Managing dashboard alerts while driving can feel stressful and distracting. You must stay calm and focus on the road when warning lights appear. Never browse your phone or look up technical error codes while driving heavy trucks.
Long haul truckers need sharp mental focus and healthy daily habits. Many drivers focus on physical wellness and research the iwndwyt meaning to maintain complete sobriety on long trips. Clear thinking helps you make safe decisions when red lights turn on.
Online Communities And Truck Forums
If your dashboard shows an unusual error message, online forums offer great advice. Truck owners share fast solutions for common sensor failures and wiring glitches. You will find thousands of helpful posts from experienced Ram truck mechanics.
While browsing online forums, you might run across casual internet slang. Younger truck enthusiasts often use shorthand phrases like the gbts meaning in off-topic comment sections. Focus on technical advice from verified mechanics when diagnosing your dashboard lights.
What To Do When A Warning Light Turns On
Pulling Over Safely
When a red warning light appears, stay calm and signal right. Move your truck safely onto the shoulder of the highway. Turn on your hazard lights so other drivers can see you clearly.
Turn off the engine immediately if the oil or temperature light turns on. Put on your parking brake and check under the vehicle for leaks. Call a professional tow service if you see fluid leaking.
Using An OBD2 Scanner
Every modern Ram truck features an OBD2 diagnostic port under the dashboard. You can plug an inexpensive code scanner into this port directly. The scanner reads diagnostic trouble codes stored inside your truck computer.
These codes point you directly to the faulty sensor or engine component. For example, code P0300 indicates a general engine misfire fault. Knowing the exact code saves you time and money at the repair shop.
Resetting Dashboard Lights
Some warning lights turn off automatically after you fix the underlying issue. For instance, filling a low tire clears the TPMS light after a short drive. Replacing a loose gas cap clears the check engine light eventually.
Never disconnect your battery simply to force a warning light off. Clearing the memory hides important error codes from your mechanic. Fix the underlying mechanical problem first to turn off the light permanently.
Follow these simple safety steps when dashboard lights illuminate:
- Identify the exact color of the glowing symbol on your dash.
- Pull over safely if the light is bright red.
- Check your vehicle digital display for specific text warning messages.
- Use an OBD2 scanner to read engine diagnostic trouble codes.
- Schedule a professional mechanic inspection for any persistent yellow lights.
Frequently Asked Questions
What Does The Red Lightning Bolt Mean On A Ram?
It indicates a fault in your electronic throttle control system. Have your throttle body and accelerator pedal sensors inspected by a mechanic.
Can I Drive With The Check Engine Light On?
Yes, if the light is solid yellow and the truck drives normally. If the check engine light flashes, stop driving immediately to avoid severe engine damage.
What Does The Exclamation Mark Inside A Horseshoe Mean?
This icon represents your Tire Pressure Monitoring System (TPMS). It means at least one tire has low air pressure and needs inflation.
Why Is My Ram Wait To Start Light Staying On?
The light stays on while glow plugs or air heaters warm up the engine. If it stays on permanently, you may have a faulty heater relay.
How Do I Reset My Dodge Ram Tire Pressure Light?
Inflate all four tires to the correct PSI listed on your door frame. Drive the truck above twenty miles per hour for ten minutes to reset the light.
What Is The Red Oil Can Symbol On My Dash?
It warns of dangerously low engine oil pressure. Pull over and turn off your engine immediately to prevent complete motor destruction.
What Does The DPF Warning Symbol Mean On Diesel Rams?
It means your diesel particulate filter is clogged with soot. Drive at highway speeds for thirty minutes to let the exhaust system clean itself.
Final Takeaways
Understanding dodge ram dashboard symbols and meanings keeps your truck reliable for years to come. Recognizing the vital difference between red and yellow warning lights prevents catastrophic engine failures. Always address red safety alerts immediately by pulling over and turning off the motor. Taking fast action on minor yellow warnings stops small sensor issues from evolving into massive repair bills.
Keep a basic OBD2 code scanner inside your truck glove box for quick troubleshooting. Pay close attention to your vehicle cluster displays and perform routine maintenance regularly. Treat your truck with proper care, and it will deliver dependable performance on every journey.
